pallet support legs pallet deck supports

Wonder B Econo Support LegWonder B 4x6 Econo-Support Leg

The Wonder B 4x6 Econo-Support Leg is made of high density polyethylene and can withstand 500 lbs of direct pressure. It inserts from the bottom side of the pallet deck through a circular 4 tab die cut hole. Rotating the leg a one eighth turn in either direction after insertion allows the locking tab to engage. Deck thickness of .225 inches is accommodated with 350 double wall corrugated cardboard being the most common deck application. They are packed 180 pieces in the standard carton which will make 20 nine hole pallets, or 15 twelve hole pallets, or three dozen 5 hole pallets. Each full carton weights 37 lbs and measures 18 x 17 x 15 for UPS shipment.

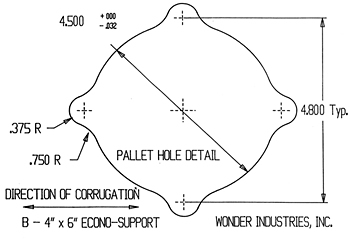

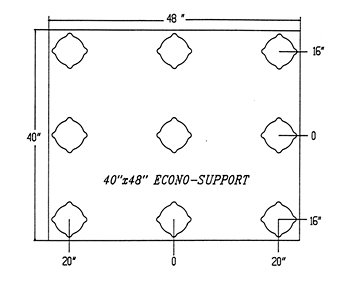

Technical Data



Wonder B Econo Support Leg wonder pallet legs
